| W Series Glue Metering Pump Main Applications |
Glue Mixing Machine, Cold Glue Machine, Coating, Polyurethane

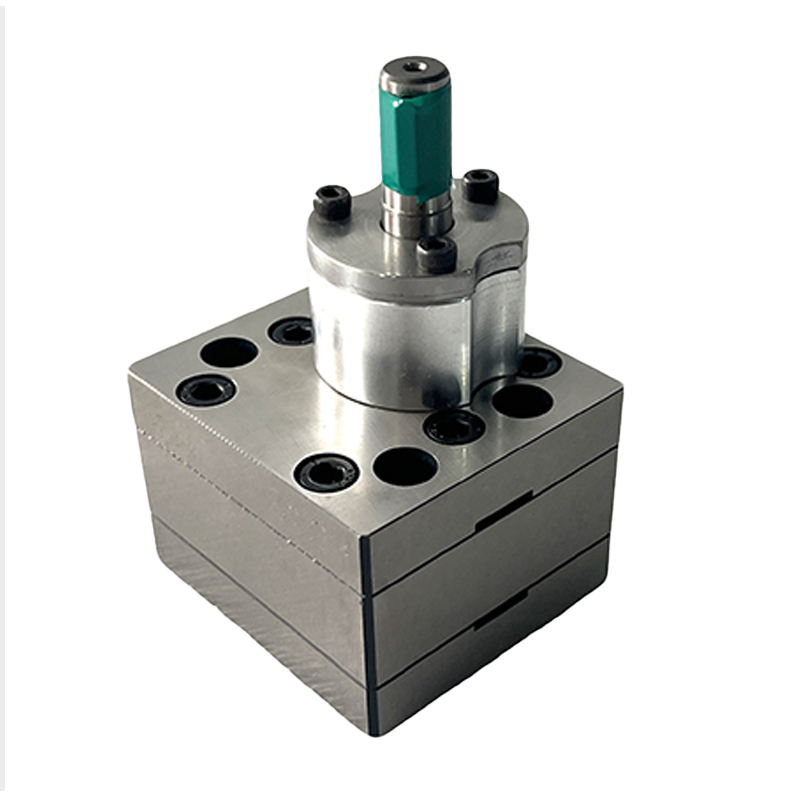

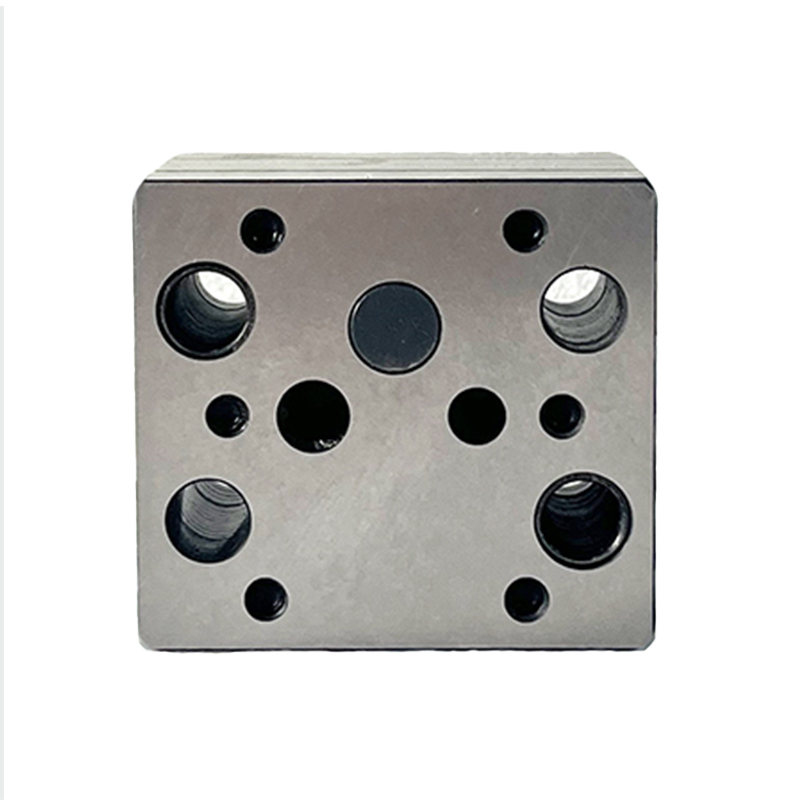

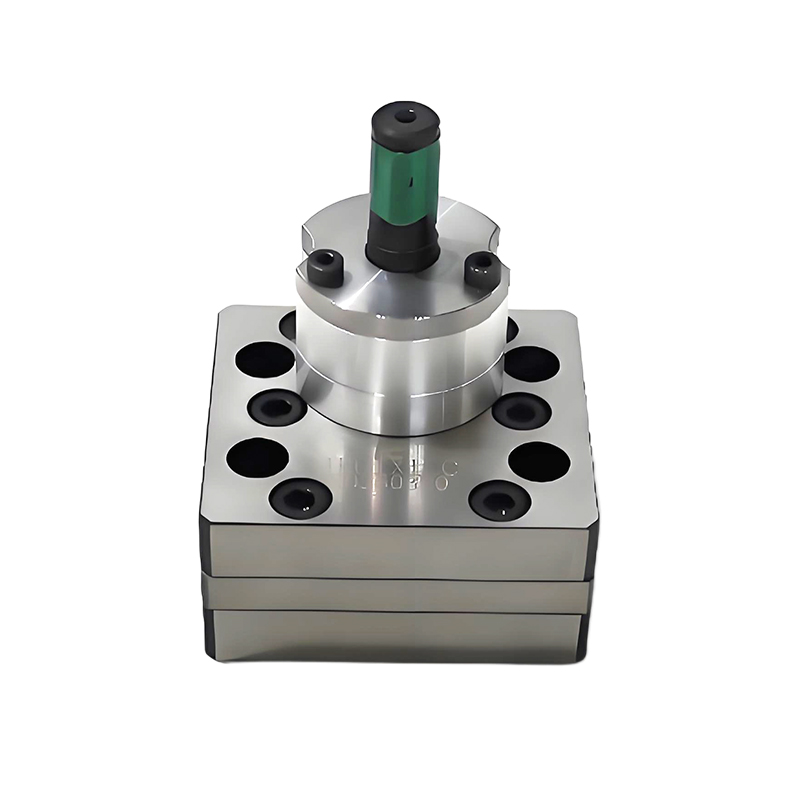

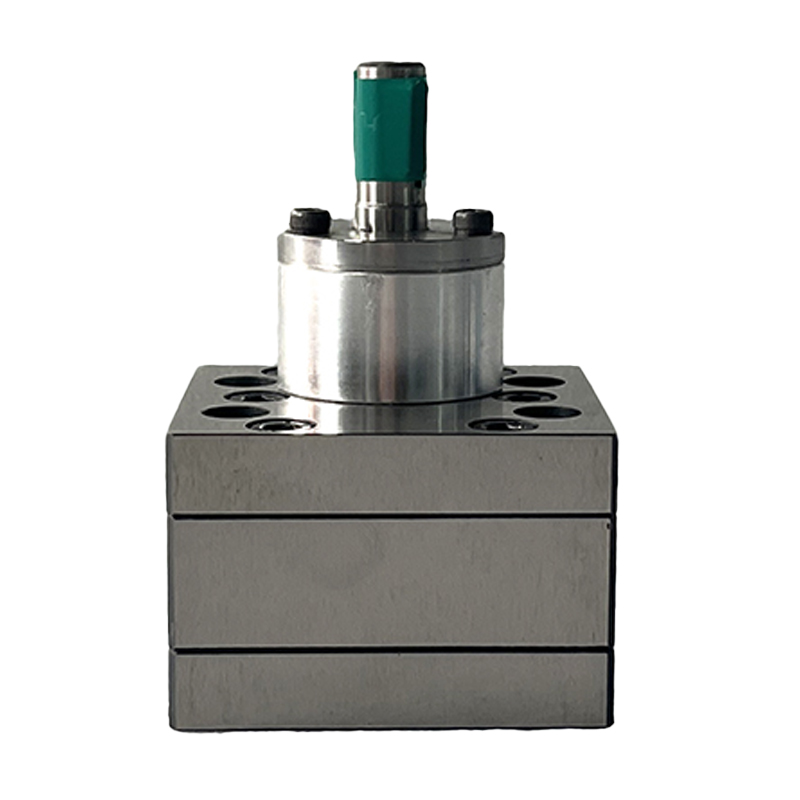

| W Series Glue Metering Pump Product Introduction |
Inlet Ports | 1 |
| Outlet Ports | 1 |
Displacement
| 0.3cc/r~3.6cc/r
|
| Speed | 10~80r/min
|
| Outlet Pressure | ＜20MPa |
| Operating Temperature | ＜220℃ |
| Sealing Type | Combination Seal |

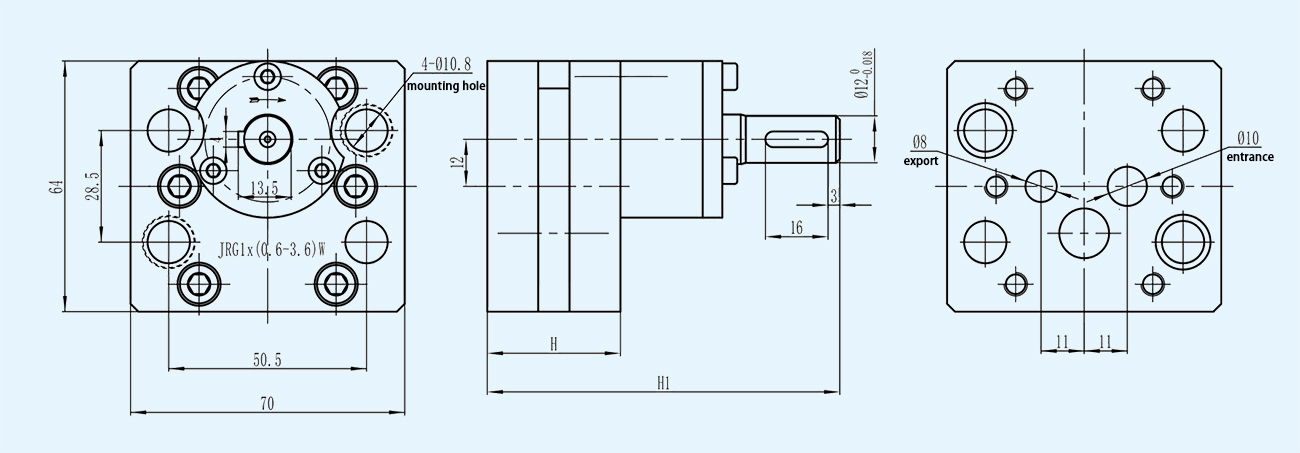

| W Series Glue Metering Pump Outline Drawing |
 |
Model
| JRG1×0.3CC | JRG1×0.6CC | JRG1×1.2CC | JRG1×1.5CC | JRG1×1.6CC | JRG1×2.4CC | JRG1×3.2CC | JRG1×3.6CC |
H（mm）
| 28 | 30 | 34 | 36 | 36.7 | 42 | 47.4 | 50 |
H1（mm）
| 84 | 86 | 90 | 92 | 92.7 | 98 | 103.4 | 106 |
Tianjin Ruicheng Pump Industry Co., Ltd. is based on technology and quality. If the above products do not meet your requirements, you can contact Ruicheng Pump's professional technician, Mr. Liu: 18698063785. Based on your specific situation, we will customize a suitable melt pump product for you.
