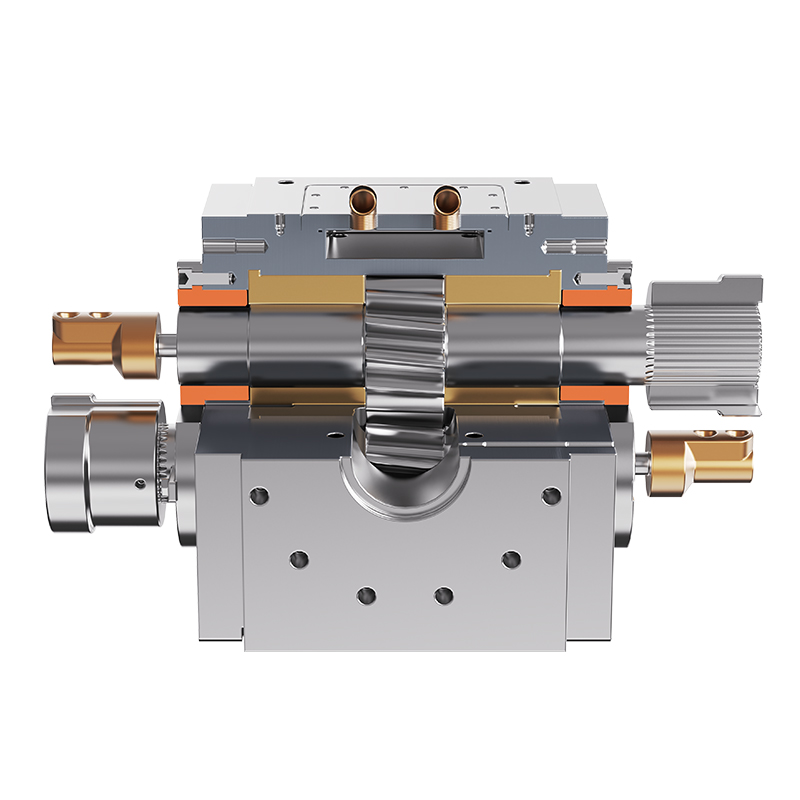

| Introduction to Features of RC-XS Dual-Drive Rubber Gear Pump |
PVC BR CR EPDM NBR SBR Natural Rubber Other Degradable Materials
| Main Application Range of RC-XS Dual-Drive Rubber Gear Pump |
1. High smoothness, near-mirror finish, suitable for heat-sensitive materials;
2. Optimized flow channels and lubrication system, featuring high-efficiency self-cleaning, no residue, no dead zones;
3. Can be applied in high-pressure (≤40MPa) and high-viscosity (≤40,000Pa·s) working conditions;
4. Precise structure, high temperature control accuracy.
| Operating Parameters of RC-XS Dual-Drive Rubber Gear Pump |
Conveyed Media Viscosity: 1~40,000Pa・s (1,000~40,000,000cP)
Inlet Pressure: 0~30MPa
Outlet Pressure: 0~40MPa
Maximum Pressure Differential: 25MPa
Operating Temperature: ≤350℃
| RC-XS Dual-Drive Rubber Gear Pump Models and Technical Parameters |
| Model | Displacement cc/r | Inlet Pressure (MPa) | Outlet Pressure (MPa) | Operating Temp ℃ | Recommended Maximum Flow m³/h |
(Most Common Materials) High Viscosity Materials 1000~8000Pa·s | Ultra-High Viscosity Materials ＞8000Pa·s | Drive Power |
| RC-X-31.5 | 31.5 | 0~30 | ≤35
| ≤350
| ≤80 | ≤42 | 5.5 |
| RC-X-50 | 50 | ≤120 | ≤70 | 7.5 |
| RC-X-100 | 100 | ≤230 | ≤120 | 11 |
| RC-X-150 | 150 | ≤350 | ≤150 | 15 |
| RC-X-200 | 200 | ≤500 | ≤250 | 18.5 |
| RC-X-250 | 250 | ≤600 | ≤300 | 22 |
| RC-X-315 | 315 | ≤700 | ≤350 | 30 |
| RC-X-500 | 500 | ≤1000 | ≤500 | 37 |
| RC-X-800 | 800 | ≤1700 | ≤950 | 45 |
Note: Displacement ranges from 5cc/r to 8000cc/r are available. If required, you can consult Technical Engineer Liu: 18630882198 for inquiries!
| RC-XS Dual-Drive Rubber Gear Pump Structural Materials |
Pump Body: Nitriding Steel, Tool Steel, Internal Flow Channels Mirror-Finished
Gears: Gears can be Straight or Helical, Special Alloy Steel/Tool Steel, Mirror-Finished
Shaft Sleeves: Tool Steel/Special Alloy Steel
Cooling Method: Shaft-End Cooling System, Circulating Water Cooling
Shaft Seals: Spiral External Discharge
Shaft Configuration: Dual-Shaft Drive, with Water Cooling
Specifications / Flow Range: 5CC~8000CC

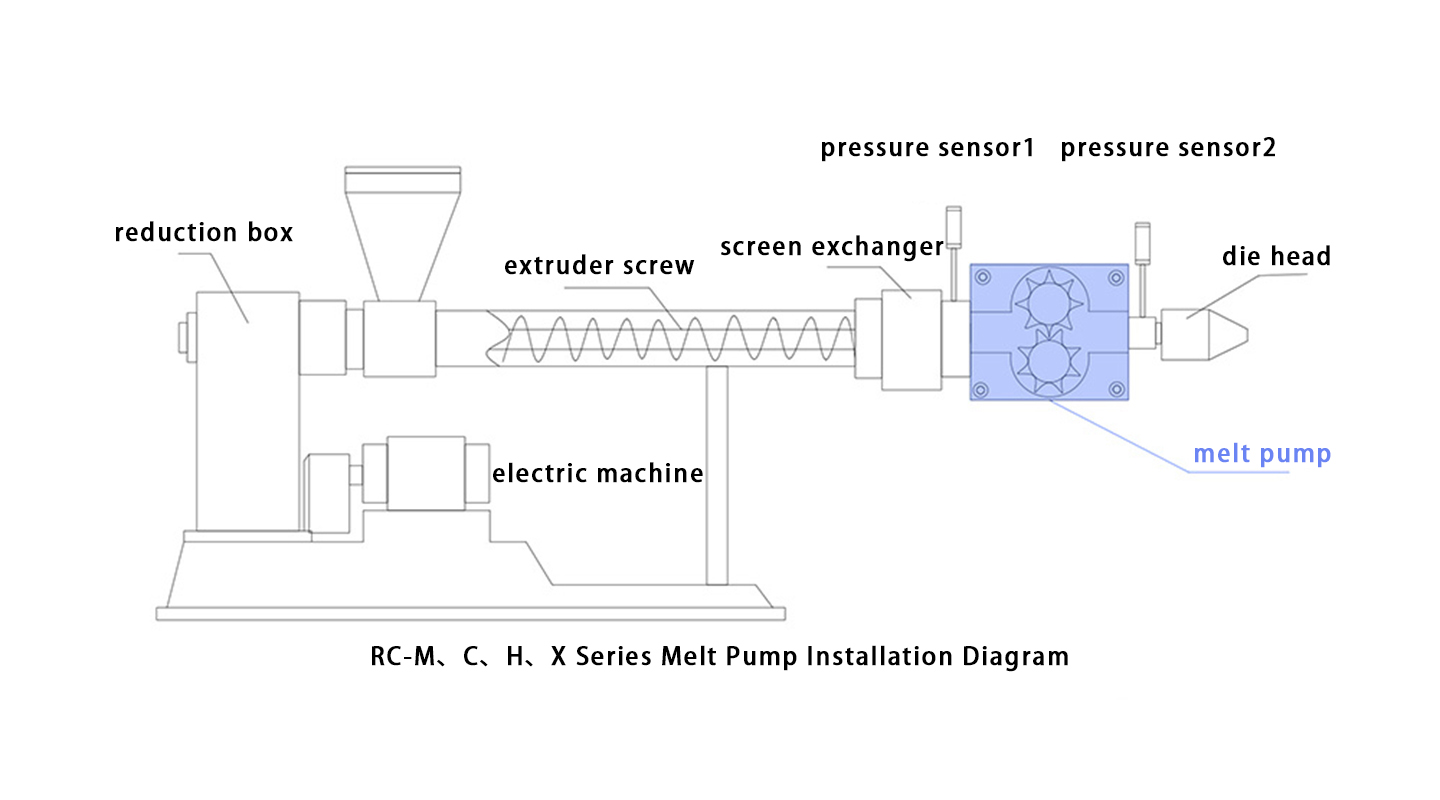

| RC-XS Dual-Drive Rubber Gear Pump Installation Instructions |
X Series Rubber Pump offers flexible installation methods. Its input shaft can be positioned either horizontally or vertically (suitable for both upward and downward orientations). The drive system typically consists of: motor, gear reducer, universal coupling, pump connection head, and reducer connection head.
The complete equipment includes rubber pump, inlet/outlet connection bodies, drive system, control system, etc. Customers can choose based on specific conditions. You can also contact Ruicheng Pump Industry's professional technical personnel, Engineer Liu: 18698063785. Based on your specific situation, we will recommend a suitable rubber pump product for you.
