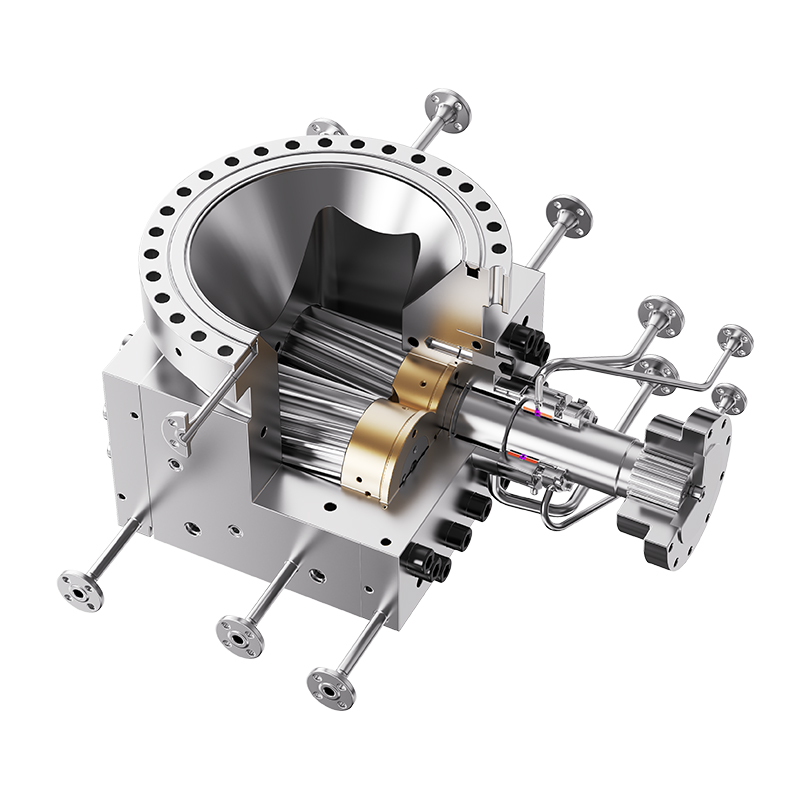

RC-R1 reactor melt metering pump

The RC-R1 reactor melt metering pump is a small displacement bottom pump from Ruicheng Pump Industry. The bottom pump is the first gear pump to be put into use in the polymer production process. When multi-component materials undergo chemical reactions to form polymers in the reaction vessel, they will enter the bottom pump installed at the bottom of the reaction vessel under the combined action of the material's own gravity and external air pressure. This type of pump requires a large vacuum environment to be formed during operation, in order to achieve traction and transportation of materials. Its product category code is R, which includes three series: R1, R2, and R3. In terms of structural design, a large suction flange is used, and the inlet and outlet channels are finely polished, resulting in a compact internal structure and reliable sealing performance. These design features ensure that the bottom pump can create a stable and reliable high negative pressure environment during operation, thereby achieving smooth and uniform material transportation. This type of pump has a wide range of applications and can transport polymers, as well as high viscosity substances without particulate impurities such as asphalt, adhesives, pharmaceuticals, food, oils, fuels, oils, coatings, lubricants, etc

Online inquiry

Previous Next

Detailed Specification Packaging

RC-R Series Reactor Melt Metering Pump Feature Introduction/ Product Features

1. Low pressure and flow pulsation, achieving near-linear flow output, easy to control;

2. Excellent self-priming performance, suitable for vacuum inlet conditions (-0.05~-0.09MPa);

3. The equipment adopts a precision structural design, demonstrating good operational accuracy and a long service life.

Bottom Mounted Pump RC-R1 Series Models and Technical Parameters/ Model and technical parameters

Model	Displacement cc/r	Inlet Pressure (MPa)	Outlet Pressure (MPa)	Operating Temp ℃	Recommended Maximum Flow m³/h	Heating Method
					Material Viscosity Range mPa・s
R1-10	10	-0.09~4	≤450	≤350	10~10,000,000	Jacket/Electric Heating
R1-20	20
R1-31.5	31.5
R1-50	50
R1-75	75
R1-100	100
R1-160	160
R1-200	200
R1-250	250

RC-R Series Reactor Melt Metering Pump Structural Materials / Construction

Pump Body: Stainless Steel, Hastelloy, Monel Alloy

Gears: Nitriding Steel, Special Tool Steel, Gears can be Straight or Helical

Sliding Bearings: Tool Steel, Titanium Liner Alloy, Silver-Nickel Alloy

Shaft Seals: Spiral Mechanical Seals

Seals: Mechanical Seals, Packing + Spiral Seals, Combination Seals with Flush Liquid

Heating Method: Electric Heating / Thermal Oil Heating

Specification Range: 5CC~38,000CC

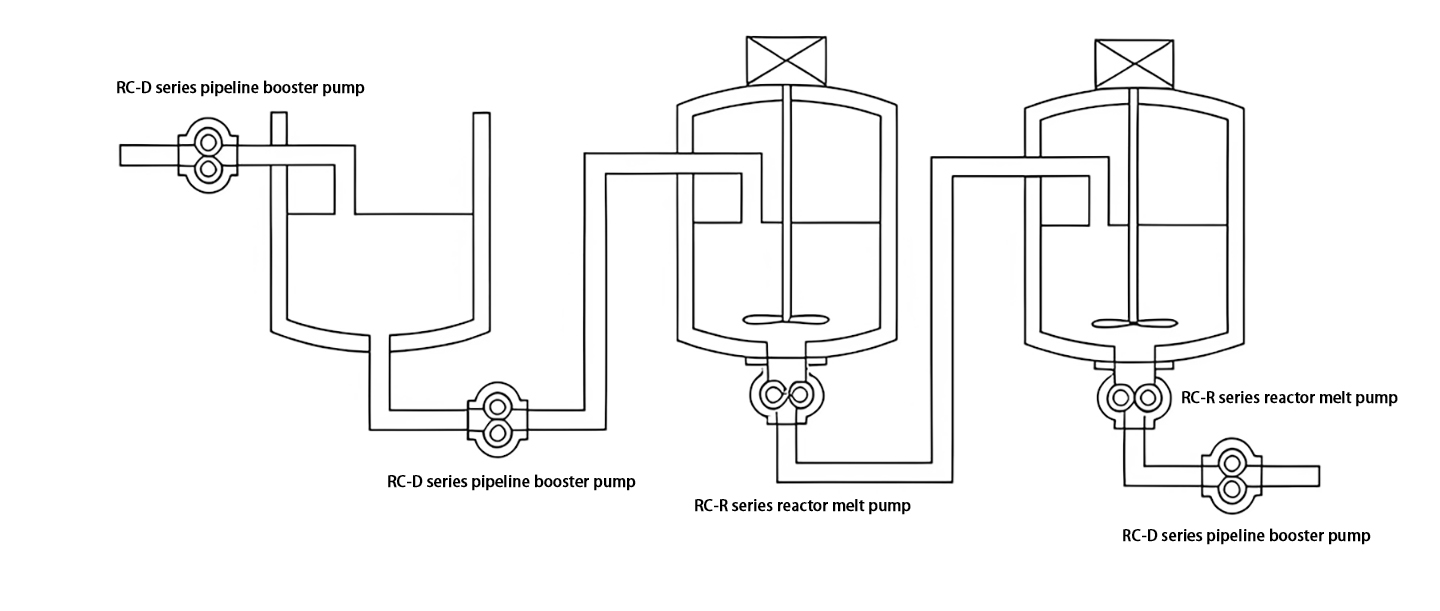

RC-R Series Reactor Melt Metering Pump Installation Instructions/ Installation instructions

The R Series ReactorMelt Metering Pump is generally installed below the reactor, serving as a discharge pump. The pump's input shaft is horizontally arranged.


The complete equipment includes melt pump, inlet/outlet connection bodies, drive system, control system, etc. Customers can choose based on specific conditions. You can also contact Ruicheng Pump Industry's professional technical personnel, Engineer Liu: 18698063785. Based on your specific situation, we will recommend a suitable melt pump product for you.
